- Place of Origin
- WUXI (CHINA)
- Application
- Produce Metal products
- Classification
- Roll Forming Machine
- HS Number
- 8455221000
- Brand
- Qinghong,OEM
- Certification
- CE,UL,ISO
- Model
- DE960
- Serial
- QHMC-0019
Tag：roll forming machine, purlin machine, Roof panel Machine Roof and wall,roof panel roll forming machine,Downspout machine,portable downspout machine,downpipe machine
Main Specification
Raw Material | 0.8-1.6mm, G250Mpa-G550MPA | GI/GL/HR/CR/Carbon steel |
|---|---|---|
De-coiler | 5Tons capacit/8tons/10tons | Manual/Electrical/ Hydraulic/Automatic |
Forming station | 23Stations to form | GCr15 steel, heat treatment |
Cutting device | Automatic length measuring by encoder & PLC. | CR12Mov cutter blade post-Cutting/pre-cutting/ double cutting |
Punching system | / | / |
Driven System | chains/gear box driven | / |
Electrical control | PANASONIC/Siemens/ Customer requires | Touch screen & Button |

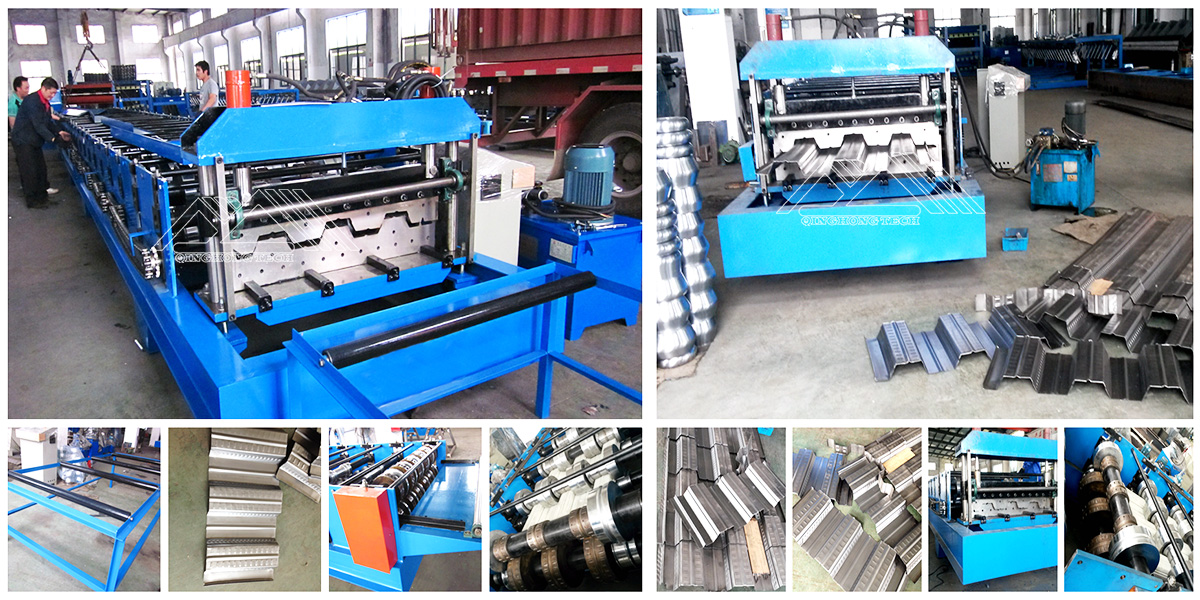

| Product Samples
